KLINGER 2D-modelling for gasket customization is an excellent solution for situations where replacing special-sized or old gaskets is challenging due to the lack of original drawings. Our service offers a fast, precise, and manual measurement-free alternative — the gasket is modelled directly on-site.
How does KLINGER 2D-modelling work?

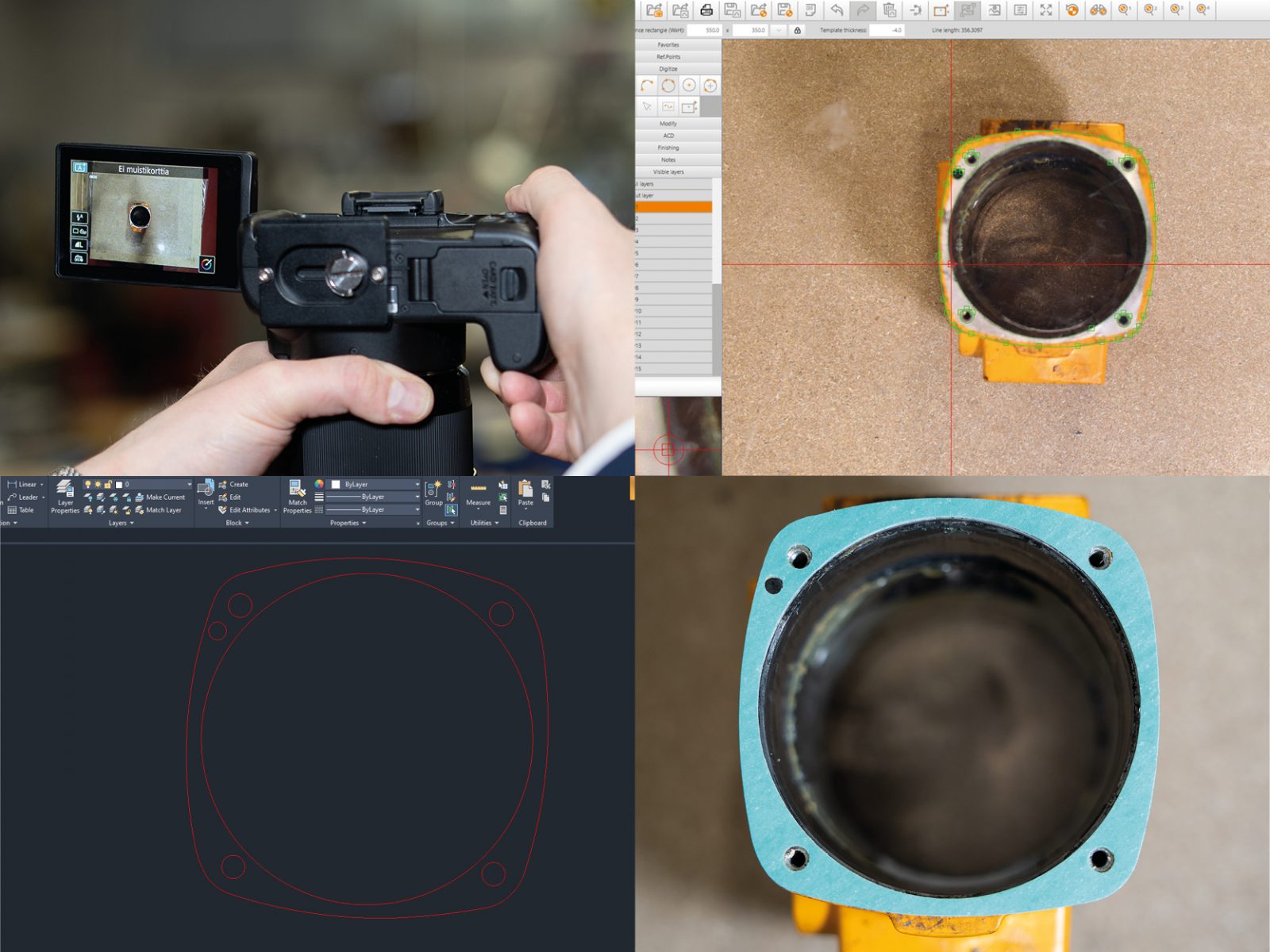

With KLINGER’s portable 2D-modelling system, high-resolution images of gaskets or flange surfaces are captured directly on-site. Based on these images, a precise 2D drawing of the gasket is generated. KLINGER’s gasket cutting facility then manufactures a perfectly fitting gasket quickly and accurately based on this drawing.
The 2D drawing is stored in KLINGER Finland’s system, allowing for easy and fast reordering of the gasket in the future — with no need for repeated measurements.
Benefits of 2D-modelling for gasket customization
The material analyser is especially suitable for verifying the material composition of metal components. It is the perfect solution for applications such as:
- Micron-level precision – accurate and repeatable cutting, even for complex shapes
- Time and cost savings –scanned gaskets are always ready for re-cutting
- Portable 2D-modelling system – can be used directly on-site, for example, for large seawater pumps and other immovable equipment
- Reduces errors – eliminates inaccuracies caused by manual measurements
- Measurement drawing always available – gaskets can be reordered anytime with guaranteed precision
What does the service include?
- Fixed price: €1000 / day – includes 2D-modelling for gasket customization, a 2D measurement drawing, and its storage in KLINGER Finland’s system, as well as 8 hours of expert labour (including travel). Gaskets ordered separately.
KLINGER 2D-modelling services across Finland
KLINGER Finland’s trained team of experts provides 2D-modelling for gasket customization services across Finland. The solution is ideal also for locations where equipment cannot be moved – such as large pumps or industrial facilities.
Order KLINGER 2D-modelling – Get in touch
Ensure precise and fast gasket reproduction – contact us today for more details: gaskets@klinger.fi
