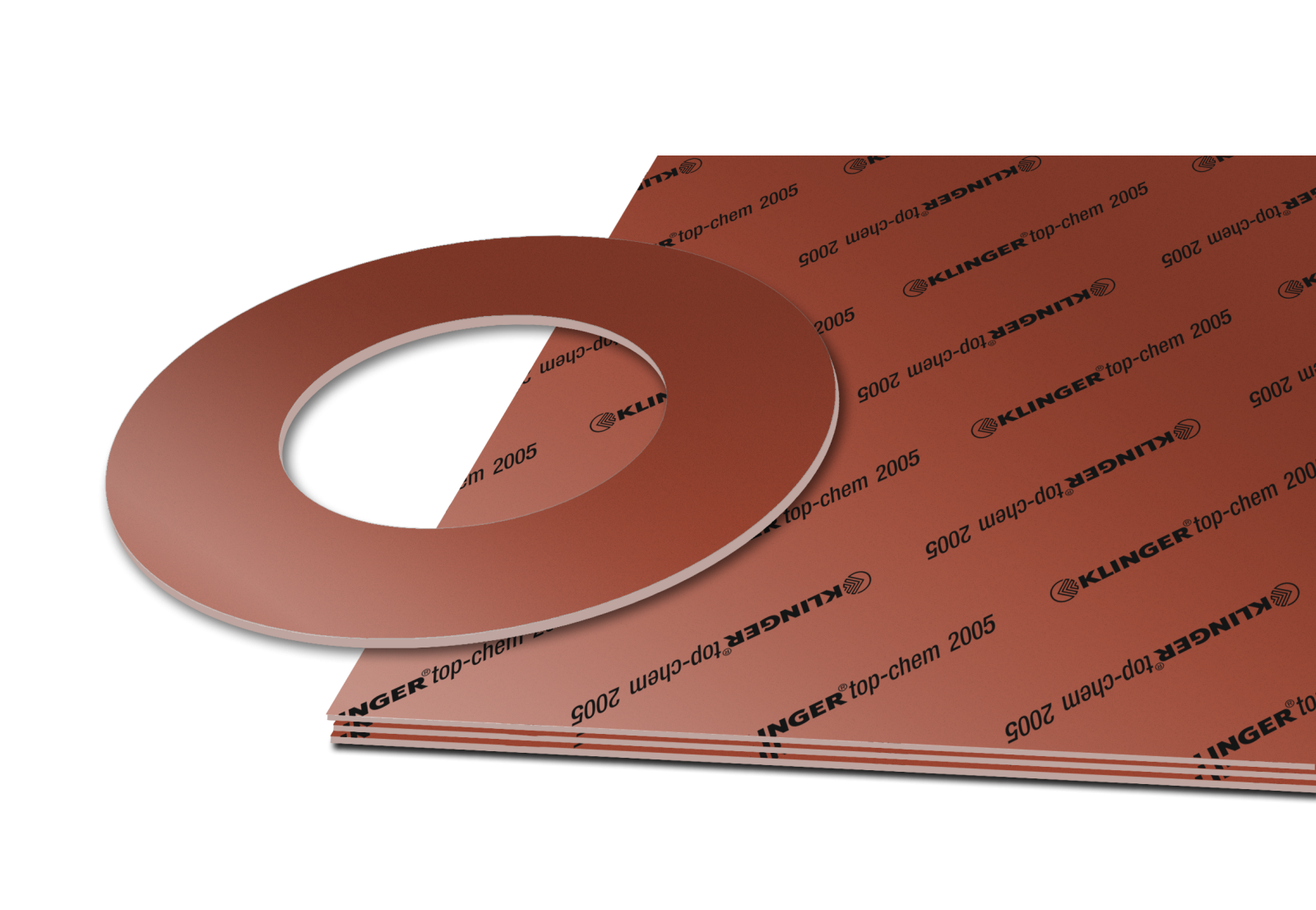

KLINGER®top-chem 2005
KLINGER® top-chem 2005 is a modified PTFE gasket that offers an economical solution for general industrial applications. The silica filler makes it particularly suitable for strong acids, and the gasket’s mechanical properties are sufficient for the majority of industrial applications. In terms of performance, top-chem 2005 is the best of the silica-filled PTFE gaskets (“red Teflon”). Suitability for temperatures above 120 °C should be verified with the KLINGER® Expert gasket selection program. For high-temperature and high-surface-load applications we recommend KLINGER® top-chem 2000. For flanges in poor condition, or when first-class tightness at lower surface pressures is required, KLINGER® top-chem 2003 is the better option.
Economical modified PTFE gasket for general industrial applications
Particularly suitable for strong acids, with mechanical properties sufficient for the majority of industrial applications at medium temperatures and loads.Applications
- General industrial applications
- Particularly suitable for strong acids
- Chemical industry process lines
- Medium temperatures and loads
- Food and beverage industry
- Water and gas applications
Key properties
- Compressibility 4 % (ASTM F 36 M)
- Recovery 40 % (ASTM F 36 M)
- Stress relaxation 25 MPa (DIN 52913)
- No cold flow
- Consistent material composition
- Density 2.2 g/cm³
Benefits
- The economical choice among modified PTFE gaskets
- Excellent resistance to strong acids
- Mechanical properties sufficient for the majority of industrial applications
- Specific leakage rate 8.75E-07 mbar × l/s × m (VDI 2440)
- The material does not age
- Installation surface pressures y 12 MPa, m 2.8 (2.0 mm)
Certificates and approvals
- TA-Luft (clean air)
- FDA conformity and Regulation (EU) No 1935/2004
- DIN-DVGW and WRAS approval
- Oxygen tested, DNV approval
- VDI 2200 blow-out
