KLINGER®soft-chem

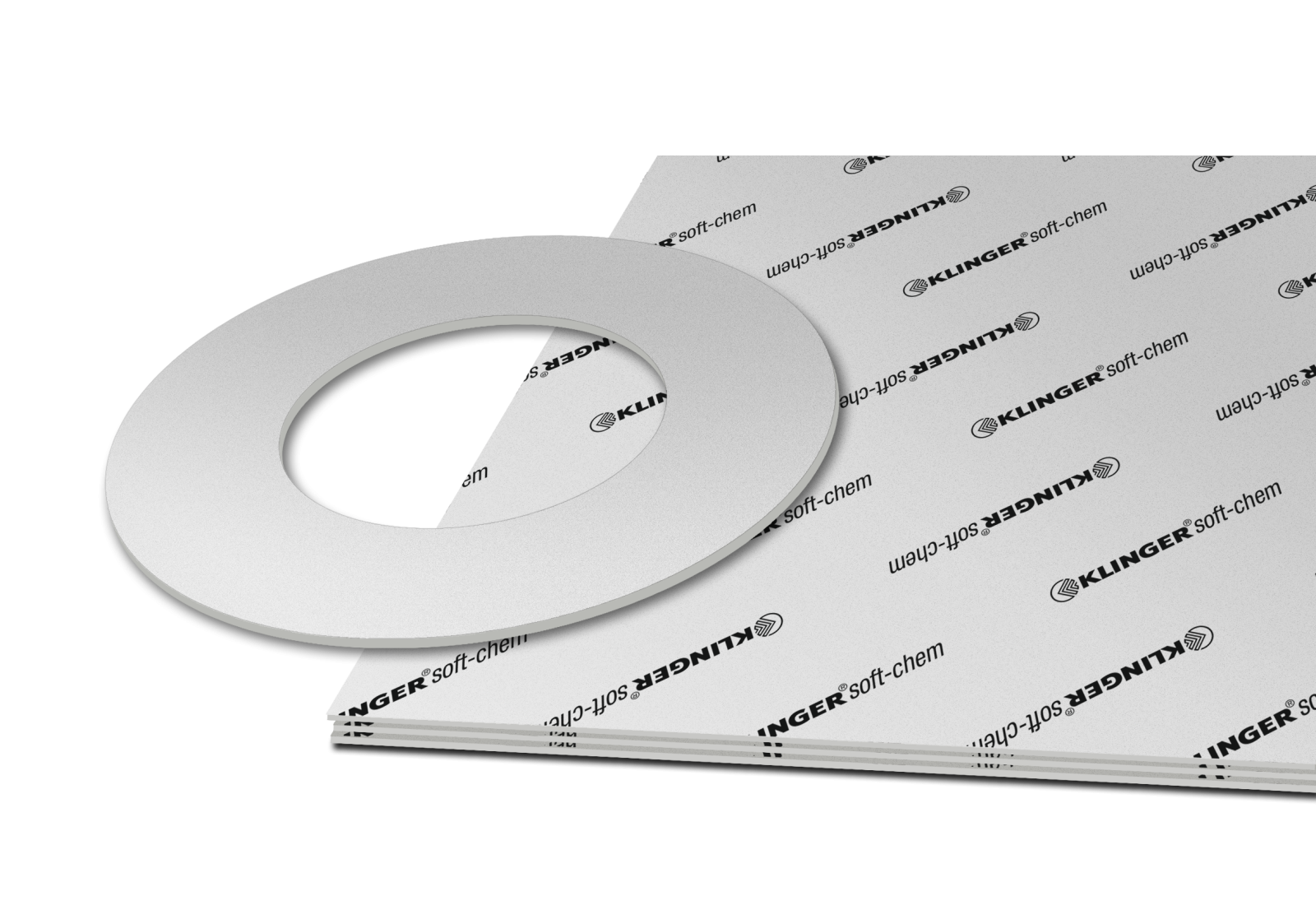

KLINGER® soft-chem is a gasket made of multidirectionally expanded PTFE, with high compressibility, excellent recovery and gas tightness. It is suitable for aggressive media and for applications where the surface pressure remains low. Thanks to its good residual recovery, the gasket suits flange faces that are damaged or not parallel, as well as glass-lined, plastic and steel flanges. The gasket is cut from sheet material, which keeps delivery reliability high and costs low. The material is suitable for service conditions up to 260 °C, and since PTFE does not age, service life is long.
Expanded 100 % PTFE gasket for low surface pressures
High compressibility and excellent conformability make this gasket a safe choice for fragile flange materials and damaged sealing faces.Applications
- General industrial applications
- Chemical industry and oil and gas
- Pulp and paper industry
- Food and pharmaceutical industry
- Energy, infrastructure and marine industry
- Glass-lined, plastic and steel flanges
Key properties
- Multidirectionally expanded 100 % PTFE
- Compressibility 55 % (ASTM F36M)
- Recovery 15 % (ASTM F36M)
- Service conditions up to 260 °C
- Density 0.9 g/cm³
- Suitable for a wide range of applications
Benefits
- Seals reliably at low surface pressures
- Conforms to damaged and uneven flange faces
- Excellent gas tightness, 0.01 mg/(s × m) (DIN 28090-2)
- Resists dilute acids and alkalis as well as solvents
- Easy to cut
- The material does not age, giving a long service life
Certificates and approvals
- TA-Luft (clean air)
- FDA conformity
- Regulation (EU) No 1935/2004 (incl. 10/2011)
